New Vulkan graphics enhancements features in Beetle PSX HW!

MDEC YUV filtering

PlayStation used a special unit called the MDEC to decode full motion videos instead of relying on software rendering (like the Saturn). These videos were encoded in YUV macroblocks and had to be converted from YCbCr to RGB so that the PSX can output the final image to the screen. A common issue with PlayStation emulators is that the chroma channel generally should be smoothed, but the PlayStation tend to leave it unfiltered.

There’s now a feature called ‘MDEC YUV smoothing’ which does filter the chroma channel. You can see the before/after screenshot above (video in question is the Resident Evil 1 intro) to see the kind of visual enhancement this brings to the picture.

SSAA (Super Sampled Anti Aliasing)


Some people prefer to play PlayStation1 games at native resolution and just applying a CRT shader at the end instead of running them at very high resolutions. However, there are some issues with that approach. 3D polygon graphics can tend to look very aliased and jagged and lacking in definition.

Alternatively, others like to crank the resolution up as high as possible. Both approaches have their pros and cons, but a definite disadvantage is that early 3D was very primitive so you might not want to see razor sharp angular polygons rendered at obscene resolutions, especially when a game relies a lot on pre-rendered backgrounds and other 2D elements. The Final Fantasy and Resident Evil games come to mind for one.

The option ‘Adaptive smoothing’ already exists and it attempts to distinguish 2D elements from 3D elements. It will smooth out the 2D elements but leave the 3D elements alone, resulting in a high resolution picture with the 2D elements not looking pixelated and ugly.

This new Vulkan-only option, SSAA, is a completely new approach. The image is rendered at the internal resolution you set it at (2x/4x/8x/16x, you name it). It then downsamples it at the final output stage back to a resolution somewhere in the ballpark of 240p. What you get is a low-resolution image with very clean anti-aliased 3D, kinda similar to the N64 actually which had native 8x multi sampled anti aliasing of some sort.

Certain CRT shaders expect a 240p-ish image to look their absolute best, so this option lends itself very well to that. It also can tend to look bit more coherent with mixed 2D and 3D in cases where adaptive smoothing fails.

Tip: We recommend you turn dithering off when using SSAA (Super Sampled Anti-Aliasing).

Example – Final Fantasy IX

Below you see SSAA in action with Final Fantasy IX on RetroArch. The first image is SSAA at 1x internal resolution. The second image is SSAA at 8x internal resolution. You can see how the downscaling does its magic in the second picture – it results in an image that almost looks like as if the polygon characters are part of the background itself.

Finally, a CRT shader is used – crt-royale-ntsc-320px.

Final Fantasy IX – SSAA at 1x internal resolution with CRT Royale
Final Fantasy IX – SSAA at 8x internal resolution with CRT Royale

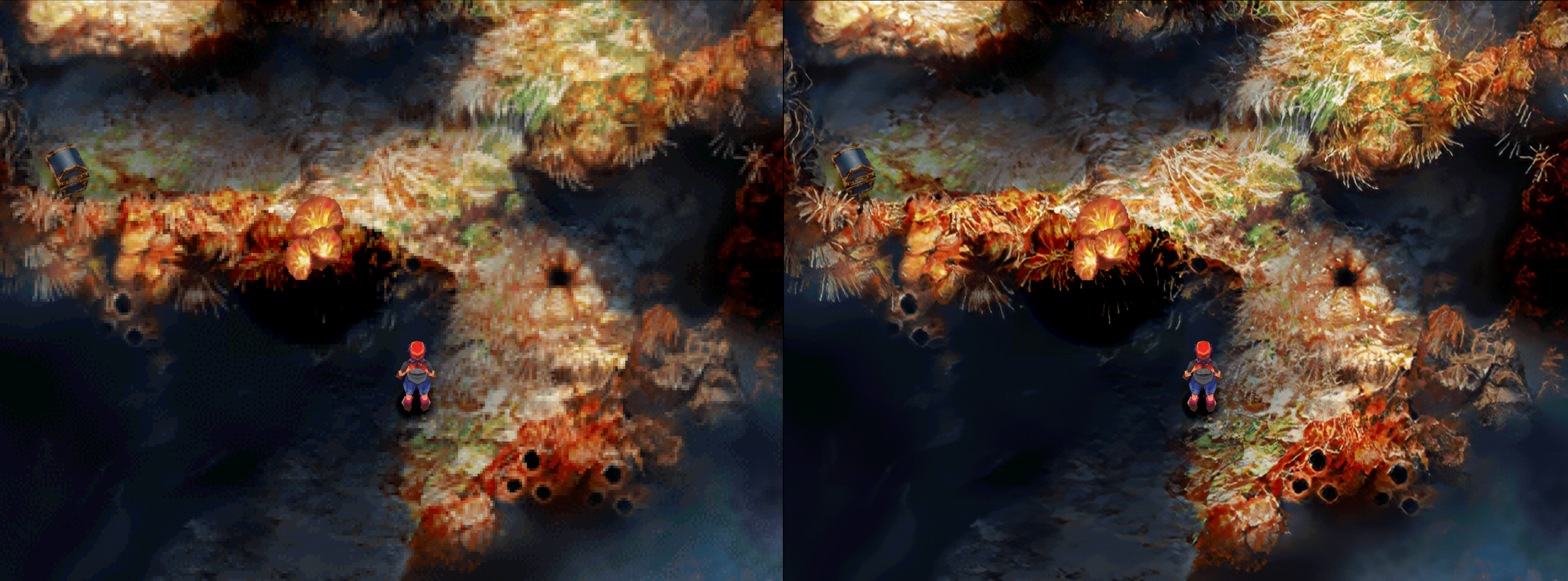

Dithering for Vulkan

PlayStation and N64 output the final image at 16 bits per pixel. Since that isn’t a particularly wide colorspace, both systems used dithering in order to fake the illusion of a larger palette of colors. This combats color banding and wouldn’t be very noticeable at native resolutions on a CRT TV. On more powerful hardware and when emulated, the limitations of this approach become clear, and some would prefer either internally rendering the dithering at the internal resolution, or disabling it altogether.

Dithering was previously ignored by the Vulkan renderer and was always turned off, no matter what you configured. Now it will actually let you enable it. If dithering is enabled, the scanout image will be 16 bits per pixel. If it is disabled, the scanout image will be 32bits. We recommend that you turn dithering off if you are going to be using ‘SSAA’ (Super Sampled Anti Aliasing)

Libretro Status Updates

So, what have we been up to?

Dolphin and Ishiiruka cores

The Dolphin libretro bounty has led to this rebasing of the Dolphin libretro core. It is now up-to-date with the latest sourcecode, and it now supports OpenGL, Direct3D11 and Vulkan! It is even available for RetroArch on Android right now, provided you use the AArch64 version (since Dolphin itself requires a 64bit CPU on Android anyway).

In addition to this, I have also taken a look at porting Ishiiruka (a Dolphin fork) to Libretro. This one is not as far along yet as the mainline Dolphin core, but we are already making steady progress with the OpenGL renderer!

RetroArch 1.7.4 – WIMP updates

There will continue to be improvements to the WIMP UI in RetroArch 1.7.4. One of the big new features will be a fancy grid view. Previously, the WIMP UI only had a list view.

Beetle PSX HW

Some important bugs have been fixed. Finally, mask bit emulation has been (hackishly) implemented by flyinghead for the OpenGL renderer, so Silent Hill’s fog finally displays properly. iCatButler has made PGXP much more robust over the past few weeks, which has led to many rendering bugs being fixed when PGXP is enabled.

Reicast

You can read about all of our improvements to the Reicast core in this separate blog post here.

Beam racing bounty – up to $1132!

The beam racing bounty has fetched $1132 so far!

RetroArch is already at the tip of the spear when it comes to latency mitigation strategies with features like runahead, configurable max swapchains, frame delay, custom video context drivers, etc. Beam racing is a new lagless VSYNC technique has been developed that is already implemented in some emulators like WinUAE. The aim of this bounty is to finally implement it in RetroArch as well, and the users/devs that want it have put their money where their mouth is for this particular feature!

RetroArch 1.6.9 -Released!

RetroArch 1.6.9 has just been released! Grab it here.

This latest version has also been uploaded to the Google Play Store.

General changelog

– Audio: Fix the Audio DSP picker
– CHEEVOS: Add support for Atari Lynx cheevos.
– CHEEVOS: Add support for RetroAchievements Leaderboards.
– GUI: (MaterialUI) Fix crash that happened on context reset with Vulkan.
– GUI: (MaterialUI) Skip querying and drawing items that are not visible; Cache content height and bbox calculation.
– GUI: (MaterialUI) Fix entry box highlight calculation.
– GUI: (XMB) Skip drawing the fading list when it is already transparent. Optimization.
– GUI: (XMB) Comment out visible item calculation in xmb_draw_items().
– GUI: (RGUI) Prevent crashes when using a non-English language reliant on UTF8.
– GUI: Add menu option for OSD background color.
– GUI: Add menu option for OSD text color.
– GUI: Add menu option to remove frame count from OSD.
– GUI: Allow wraparound of int/float settings when pressing the left key
– INPUT/LIBRETRO: Add support for more mouse buttons (buttons 4/5)
– INPUT/LIBRETRO: Add support for analog buttons
– INPUT: Always show the controls menu even if descriptors are not set
– INPUT: Fix input descriptors not being set on cores that don’t implement the controllers interface
– INPUT: Apply descriptors only for the amount of cores the core supports
– INPUT: Implement keyboard to gamepad input remapping (limited to one gamepad device for now)
– INPUT: Fix absolute mouse move handling on the winraw driver
– INPUT: Ignore keyboard input if window is not active on udev driver
– INPUT: Sanitize the filenames of autoconfig profiles before saving
– LOBBIES: Fix crash on navigating left / right from the lobby menu
– LOCALIZATION: Update Dutch translation
– LOCALIZATION: Update Italian translation.
– LOCALIZATION: Update Japanese translation.
– LOCALIZATION: Update Portuguese-Brazilian translation.
– LOCALIZATION: Update Russian translation.
– LINUX/ARMHF: Set buildbot updater URL to armhf location instead of blank string
– LINUX/PI: Broadcom VC4: Add Videocore config option
– LINUX/UDEV: Fix – RetroArch reads keyboard input when not focused with the udev input driver.
– NETPLAY: Fix disconnection not fully deinitializing Netplay.
– NETPLAY: Fix lan rooms when there is more than one room
– NETPLAY: Fix lan rooms on systems where all addresses are treated as IPv6
– COMMON: Fix clear/free loop conditionals in playlists.
– WINDOWS/GDI: Fix flickering of text.
– WINDOWS/GDI: Fix graphics corruption on Windows 98
– WINDOWS/GDI: Allow compiling without DirectInput8 for NT support
– WINDOWS/WGL: Try to use wglSwapLayerBuffers instead of SwapBuffers if possible (for more optimal performance).
– WINDOWS: Fix menubar text corruption on Japanese locale systems
– WINDOWS: Support Unicode file I/O (can now display CJK characters in file browser for example).
– WINDOWS: Support Windows 95, NT3.51, NT4
– WINDOWS: add Makefile.griffin targets for msvc6,2003,2005,2010,2012,2013
– WII: Use custom, embedded libogc SDK.
– WIIU: Initial touchscreen support for WiiU gamepad.
– WIIU: Add Cheevos support.
– SCANNER: Fix archive scanning.
– SCANNER: Support CHD files.
– SCANNER: Support Gamecube ISO scanning.
– SCANNER: Use primary data track of disc images for CRC lookups rather than cue files. This is slower but finds matches more reliably, and is necessary for CHD files to work at all. Update your databases!
– SCANNER: Fall back on looking inside archives when matching MAME/FBA content (most recent cores only). If you had difficulty with content being detected before, you may have better luck now. Update your databases and core info!

Highlights

Scanner system supports more formats

CHD and Gamecube ISO files can now be scanned. A lot of libretro cores have gained the ability to use CHD image files, some of them being all the Mednafen-derived cores (also known as Beetle cores). There is also a new fallback used for scanning MAME/FBA content which looks inside an archive for matching files. If you had trouble having the scanner detect your content before, you might be more usccessful now.

Retro Achievements – Leaderboard support

Unicode support for Windows users

Unicode is now supported for file I/O (Input/Output). What this means, is that game content that uses CJK characters and/or other non-ASCII characters can now be read by RetroArch. These files will also show up from within the filebrowser. Useful for our Japanese users.

NOTE: MaterialUI (the default UI on Android) might still exhibit issues displaying Japanese on Android. This is due to a font renderer that will need to be improved in a future version in order to display these extra characters properly.

Kiosk Mode and more


You can now tailor RetroArch’s UI even more to your own personal preferences. You can choose which submenus to hide, and which to show.

There’s also a special mode called ‘Kiosk Mode’. When enabled, you won’t be able to access any settings, and/or install/upgrade any cores. The guy who implemented this feature likely intended it as a parental control feature to make sure that kids don’t get to mess with any of the internal settings by accident that could end up breaking something. There’s also a password lock you can enable so that any access to settings can still be curtailed.

See the PDF article here for a more detailed breakdown of Kiosk Mode –

https://github.com/libretro/RetroArch/files/1320429/RetroArch.Kiosk.Mode.v4.pdf

Input enhancements


The libretro API has been enhanced by David Walters in the following ways:

  • Button input was previously all-digital, now button input can be analog as well. As a proof of concept, this has already been implemented for the Beetle Saturn core. Analog triggers now work as expected. This feature will be necessary for future systems like PlayStation2, where each face button on the gamepad was an analogue button.
  • Mouse buttons 4 and 5 were added. A proof of concept has already been implemented for Beetle Saturn. The mouse on the Sega Saturn had at least 5 buttons instead of the PlayStation mouse’s 2.


Mouse support and lightgun support has also been added to Beetle PSX, a much-requested feature. There are also some proposals on how to improve lightgun support in libretro so that it is more conducive to non-mouse based lightgun solutions. As ever, additions to the libretro API have to be backwards compatible and they should not break ABI, so that existing frontends will not be adversely affected but at the same time new frontends can reap the benefits of these new features all the same.

What’s coming next for RetroArch

We will have a separate blog post on this soon.

In the meantime, check out the addendum to this post –

https://www.libretro.com/index.php/core-updates-since-last-release/

This details all of the changes to the cores that have happened since the last release.
