4DO: Recent Changes and Future Plans

About two years ago I more or less adopted the libretro 4DO core. After fixing a VSYNC issue that many had complained about I ended up almost completely refactoring the code and adding a number of features. After a year’ish break I’m back and have been focusing on accuracy and some experimentation in HLE (high level emulation). Here’s an overview of some of that work and plans for the future.

Adding HLE

The 3DO was ahead of its time in a number of ways. One was that it had an operating system. It has preemptive multitasking, threading, high level memory management, dynamic loading of “folios” (libraries), IPC, IO APIs, and general abstractions to much of the hardware. The OS and most/all software for the platform is written in C and compiled using the Norcroft ARM toolchain from that era. The OS is present in the system’s ROM but also included on each CDROM. The ROM OS is pretty thorough but ultimately a bootloader and bootstraps the environment before handing control off to the software on the CDROM. Many of the core OS functions are called via the ARM SWI (software interrupt) instruction. This makes catching and overriding these calls very easy when combined with knowledge of the ARM procedure call standard.

Catching and overriding some or all of the OS functions would theoretically improve performance and/or enable advanced features. Some of these functions are somewhat complicated but one set of SWI calls were a perfect candidate for HLE: the matrix arithmetic functions. The MADAM graphics co-processor has a set of hardware accelerated 16.16 fixed point matrix arithmetic functions. This is used in a number of 3D games and called regularly. While reworking MADAM emulation in the past it was recognized that the OS could and would check the revision of the MADAM chip and had a fallback to software based matrix functions if it recognized it was running on a prototype system without the matrix hardware and that for some games there was a slight speed increase when switching between the hardware emulation and the software routines. So we know that improving the matrix arithmetic situation could help lower end systems struggling with the LLE and it should also be simple to ensure accuracy.

So we’ve added a new, optional, HLE mode that replaces the emulated hardware or software matrix functions with native fixed point calculations performed in straight C. Games that make heavy use of the matrix hardware run a few FPS faster on lower end systems such as the XU4. The option can be toggled in real time making comparison easy. You can see what games use these functions on the 3DO Development Repo site.

In the future a number of other functions would be interesting to replace such as the DSP and filesystem APIs. The DSP never got a development kit so most (all?) games use standard programs provided by The 3DO Company. Meaning that each of these programs could be statically re-implemented in C instead of using the current interpreter. The DSP is probably 1/3 of the CPU cost to emulation so HLE could make a big impact there. With the filesystem API the host storage device could be used directly allowing easier sharing and backup of save games and offering more space than a real system could have.

VDLP Rewrite

The 3DO has a fairly advanced video display line processor. It has programmable functions which provide a number of features including: managing CLUTs (color lookup tables), performing optional horizontal and vertical interpolation (upscaling from the internal 320×240 framebuffer to 640×480), managing background color, integrating secondary video data streams, etc.

The FreeDO/4DO VDLP emulation was not the best. If you read the patents the system seemed reasonably straightforward but the code not so much.

  • Has a lot of literal values for masks and shifts making it unclear what is being processed.
  • Variable names did not always match the docs.
  • Inadvertently reversed logic that rendered the wrong lines.
  • A constant bodge value used to offset the rendering line. Didn’t have a functional impact but was confusing and ugly.
  • It fails to properly manage the disabling render of a line. This can result in garbage being rendered.
  • Lacks the interpolation to full NTSC or PAL frames.
  • A general lack of PAL support.
  • It failed to properly sync line rendering with libretro’s main callback leading to additional rendering latency.
  • Has an unnecessary step in the rendering pipeline. Rather than taking the internal VRAM framebuffer and directly generating the buffer for the host to display it was copying the data into an intermediate structure which later was converted into a host compatible format. This copying offered no additional functionality and could be removed entirely.
  • Alternative color formats were ignored completely. Only P555 was supported. Though it is unclear if any software use the other formats.

A new VDLP core has been written from scratch to fix some of the above and enable future enhancements. New features include:

  • Lower frame rendering latency
  • Properly synced frame generation with libretro run loop
  • Improved performance due to removal of extra rendering stage
  • Ability to choose any of the libretro pixel formats (XRGB8888, 0RGB1555, or RGB565). Formerly only supported XRGB8888. May improve performance on 16bpp platforms.
  • Forced CLUT bypass mode. The VDLP has a special, per line and per pixel ability to disable color lookups and convert the P555 RGB to 888 RGB by a logical shift left of 3. Many games technically use a CLUT but in fact use a default palette that matches the left shift values. While this may cause color distortions on some games it also should improve performance due to a simpler pixel conversion function.

Interpolation is still on the TODO list. It will add non-insignificant cost to the rendering pipeline but was a significant feature of the platform and would be nice to have for the authenticity.

PAL ANVIL Support

Later revisions of the 3DO had a chip called ANVIL which was the combination of the co-processors MADAM and CLIO. The ROM for those systems are very similar to the previous model’s ROMs except that it appeared to be mirrored to a different memory location. It put a single unconditional jump at bootup into that mirrored location but all other references were to the original memory range. This  memory range was not properly supported nor was the VDLP and general rendering pipeline designed to work with PAL. All of that has been fixed. You can use EU ROMs which will cause EU games to run in one of two PAL resolutions. For the time being the ROM and resolution/field rate need to be selected manually.

A list of games and their supported region modes can be found here. Few games actually render at full PAL resolutions (PAL2). Most are letterboxed NTSC (PAL1).

Future Work

  • New HLE functions as described above
  • VDLP interpolation (dev docs, patent)
  • Increased emulated system DRAM and VRAM. The OS can support up to 14MB of DRAM & 2MB of VRAM or 15MB DRAM & 1MB VRAM. The emulator needs to be rewritten to enable it. This could help with homebrew.
  • Rewrite of the ARM and DSP cores
  • Rewrite of the CEL renderer
  • Removal of the “hacks” / improve accuracy
  • Improve accuracy by adding MADAM memory fence support and proper CPU exceptions such as those related to data alignment
  • Automatic detection of NTSC/PAL modes
  • Configurable hardware revisions of MADAM and CLIO chips
  • Add features to help with homebrew development and debugging
  • Other misc things

Renaming of the Project

Development on the original 4DO projected stopped a number of years ago and while the website is still up the project is effectively dead. It’s been noticed that people regularly believe that the old 4DO project and the libretro core are largely identical however the libretro core has gone under significant restructuring, rewrites, and offers new features. To limit confusion we are planning on renaming the project to Opera in the not too distant future. Opera was the code name for the 3DO project.

Related Work

Optimus (author of OptiDoom, the reworked 3DO Doom port) and I have created a new website dedicated to all things 3DO development. We’re writing homebrew tutorials, documenting the hardware, posting development toolkits and homebrew tools, etc. The hope is to spur interest in the platform and lower the barrier to entry.

Right now there is a very small group of individuals working in the 3DO and M2 space. Whether that be documentation, emulation, or homebrew. We’d like to extend an invitation to any and all interested in the 3DO or M2 to help in any capacity or consider the platforms for their current or future homebrew projects. We’ve got a big TODO list that we would love help in tackling. If you’re just interested in following our progress you can create an account on the wiki and subscribe to updates and/or “Watch” the libretro project.

RetroArch Disc Project – Alpha testing has begun! Details inside

Ever since the announcement earlier on June 30th, we have been working hard on the RetroArch Disc Project, and we are now getting to the stage where we want users to start alpha testing the latest code.

We invite you to come over to our Discord channel (also linked to on the RetroArch website – click on the tab ‘Discord’)- and join the channel #discordproject.

How to apply for alpha testing

For the purpose of this alpha test, we need you to meet the following requirements:

  • You are using the latest nightly versions of RetroArch (available here).
  • You are using RetroArch on PC, and are running either Linux or Windows with the CDROM support included.
  • Make sure the cores you are going to be testing are the latest up-to-date versions. Update them daily from the Core Updater if unsure – the cores should have physical CDROM support, otherwise the testing won’t work.
  • You have an optical disc drive (either USB or internal, any CD-ROM/DVD-ROM/BD-ROM drive should do).

Report issues you’re having with physical CDROM playback. Be as detailed as possible in your feedback – we are especially interested in which optical disc drive you’re using.

Be prepared that you might be asked by a moderator to run ‘retroarch_debug.exe’ and return a log message back to us in order to learn more about the issues you’re having. ‘retroarch_debug.exe’ is a debug executable that should be shipped with every RetroArch nightly version for Windows. For Linux users, we assume that they can build from source and compile with CDROM_DEBUG=1 manually in order to run these more detailed debug tests.

Compatible cores

Listed below are some of the cores that we added physical CD-ROM support to, and the ones that we would like you to test –

  • Beetle PSX (HW and non-HW)
  • Beetle Saturn
  • Genesis Plus GX
  • 4DO
  • Redbook Audio Player (Audio CD core)

We have also added support to more cores, but for now we want to go with these cores as they have been most extensively tested.

A couple of known edge cases:

  • Beetle PSX HW: The ‘vulkan’ renderer can exhibit issues where either the CD will not work, or some other corruption issue will manifest itself. We recommend you use ‘opengl’ or ‘software’ for now while you test CDROM.
  • Beetle PSX HW: Make sure the core option ‘CD Access Method’ is not set to ‘precache’. If you do, real discs won’t work.

How to load discs

1.You need to first start up the core itself (there is no automatic system detection yet when you insert a disc).
Go to Load Core, and select the core you want to use.

2. Once the core is loaded, select ‘Load Disc’.

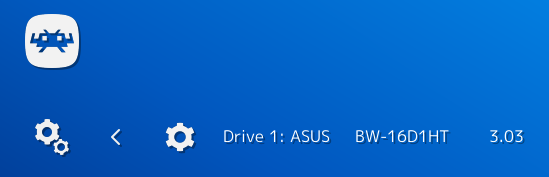

3. It will now list all optical drives. Make sure the disc you want to use has been inserted into the optical drive tray and make sure the tray is closed. Then select the drive. The core will now start with your CDROM as input.

How to dump discs

RetroArch can dump discs to internal storage in bin/cue format. The video above will show you how.

  1. Select ‘Dump Disc’.
  2. It will now list all optical drives. Make sure the disc you want to use has been inserted into the optical drive tray and make sure the tray is closed. Then select the drive.

The disc will now be dumped to the ‘Downloads’ directory. It will continue showing the progress bar until the operation has finished. In the meantime, you can play any core/game (as long as it doesn’t involve real CD playback) until the dumping has finished.

Redbook Audio Player – Libretro core for music CD playback!

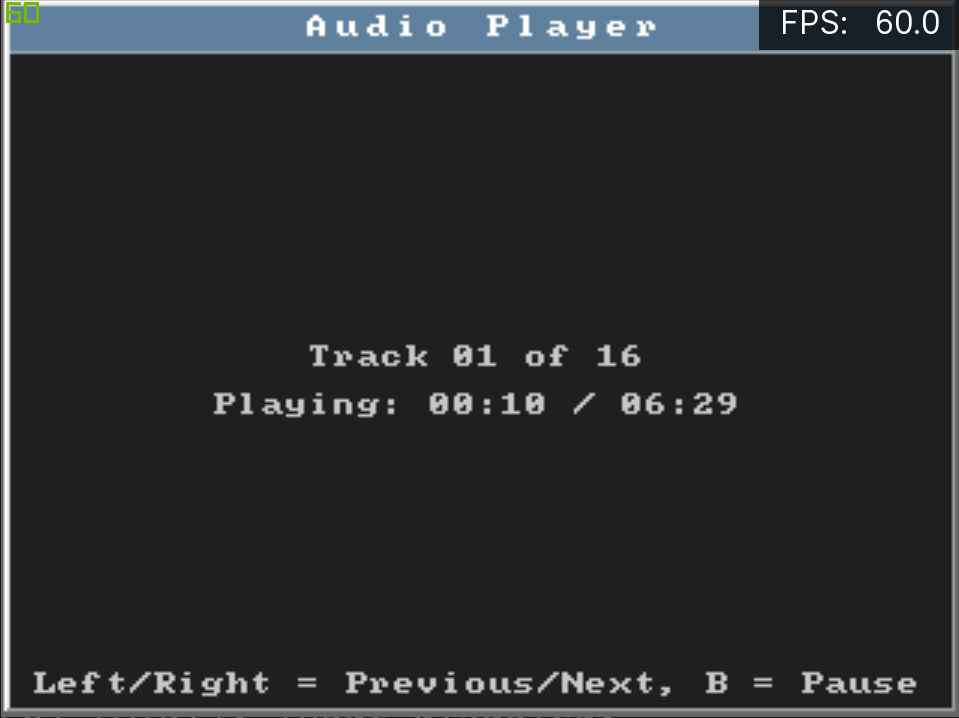

As a testbed for the Disc Project, we made a redbook audio CD player Libretro core!

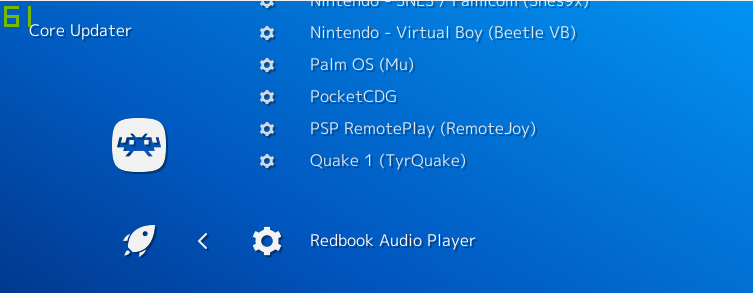

You can grab this core for Windows and/or Linux by going to Online Updater, and downloading it from the list (Redbook Audio Player).

Known potential issues

  • Right now, CDROM works better on Linux vs. Windows.
  • FMV playback with Beetle PSX HW has the potential to be slow on some optical disc drives on Windows. Cause yet unconfirmed.
  • There is a known issue with redbook audio – the redbook audio track begins a few seconds later from its starting period.
  • Libcrypt copy-protected PlayStation1 games will not work right now, but any other copy-protected PlayStation1 disc should.
    Here is a listing of some Libcrypt-protected games from Europe: https://hastebin.com/ruyacahuba.http . You can generally assume these won’t work.

RetroArch Disc Project – Disc dumping to internal storage now possible!

We’ve written about the RetroArch Disc Project some time ago. To refreshen your memory, we want to make it possible to play physical optical discs with RetroArch.

It is our full intent to ship an initial beta version of this in a future version of RetroArch (maybe the next one?).

So far, we have added CDROM support for the following systems:

  • PlayStation1
  • Sega CD
  • Sega Saturn
  • 3DO

Disc dumping

We’ve now added disc dumping as well! Go to the Main Menu, go to ‘Load Disc’. If you have more than one physical drive, you’ll see several disc drives. If no disk drives are detected, it will show nothing here.

Assuming you have a disc already inserted, select the disc drive menu entry and it should now start dumping your inserted media disc to RetroArch’s internal storage. During this time, you can go do something else while you wait for it to load. For instance, you can go load another core/game and just play it while waiting for the menu widget to finish.

By default right now, RetroArch will store all dumped CDROM images to the ‘Downloads’ directory of RetroArch. There might be more options for this coming up soon in the  near future.

Disc images are dumped in bin/cue format. Most of the dumped images work generally very well, but games which rely a lot on redbook audio might still have some random issues
